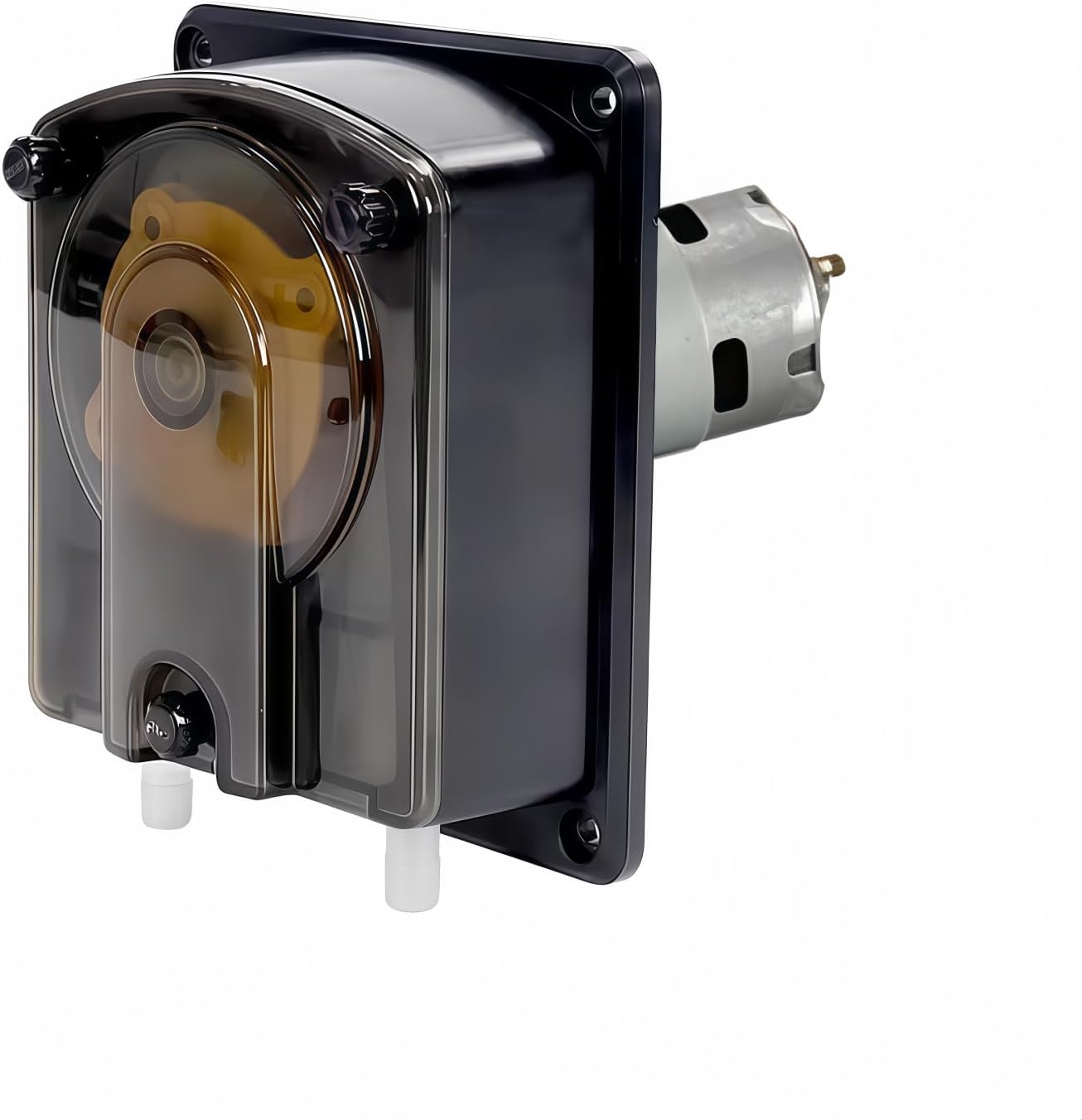

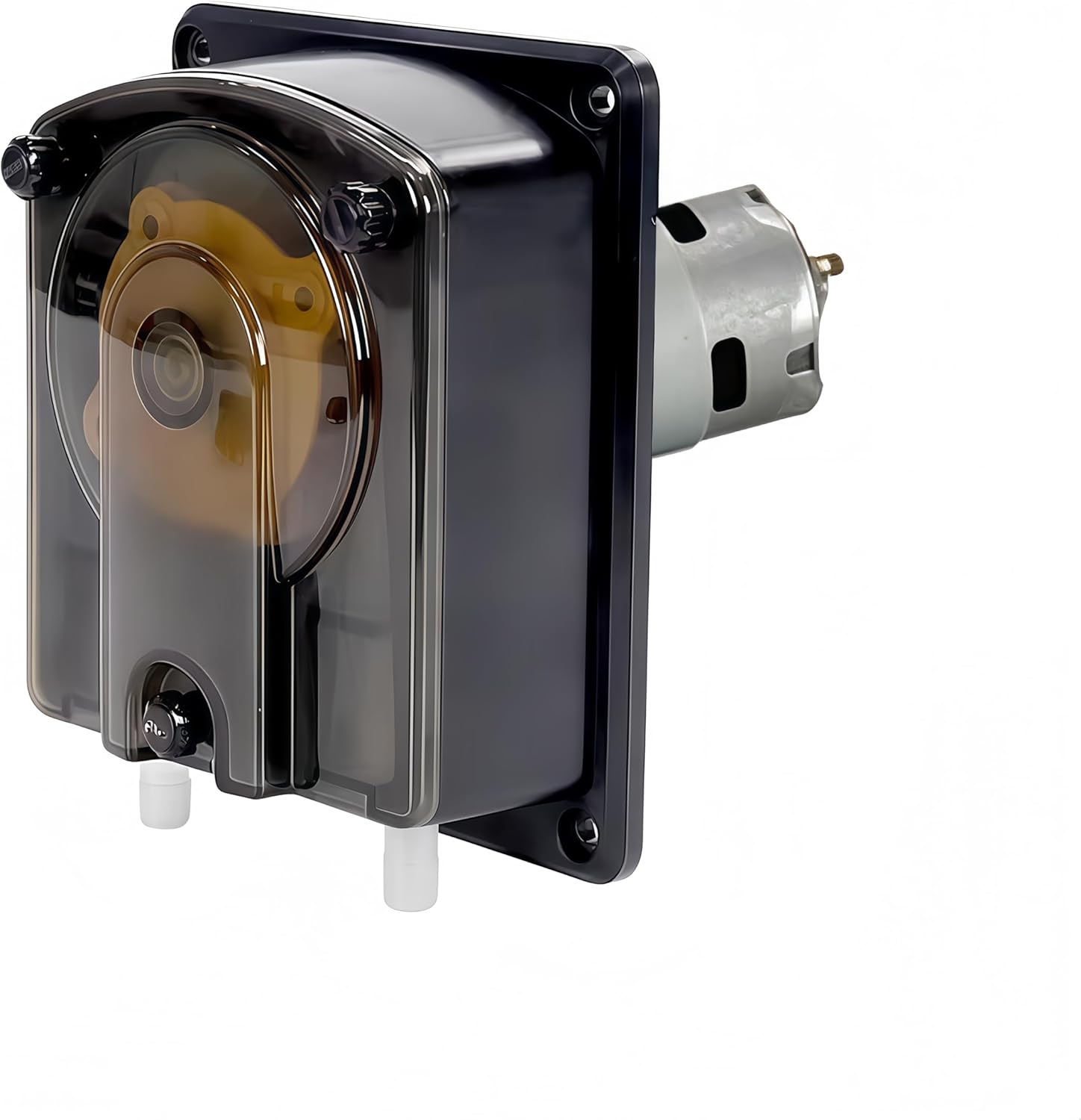

353K OEM Peristaltic Pump Industrial Metering High Flow Rate Filling Machine Self-priming Circulation Water Pump (353K/BT, 24V, 280R, 73# 4120ml/min)
4.1 (86 items)
Limited Time SaleUS$169.20 cheaper than the new price!!
Free cash-on-delivery fees for purchases over $99
Product details
| Management number | 220357729 | Release Date | 2026/05/03 | List Price | US$112.80 | Model Number | 220357729 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
Product parameters:Product Name: 353K Quick Mounting Panel Peristaltic PumpProduct Model: 353K/ZL, 353K/ZLX, 353K/BTMotor Type: DC Geared Motor, DC Planetary Gear Motor, Stepper MotorVoltage: DC 12V, 4A / 24V, 2A; DC24V, 4A; DC24V, 4A or DC36V, 3.3APower: ≤48W, ≤72W, ≤54WWeight: 1282g, 1313g, 1825gOperating Environment: Temperature 0~60℃, Relative Humidity <85% RH Outlet Pressure: ≤0.17MPa Noise: ≤67dB, ≤72dB, ≤61dB353K/ZL, 353K/ZLX Features: Start/Stop, Forward/Reverse (by reversing wiring sequence), Speed Adjustment (with DC speed control board)353K/BT Features: Start/Stop, Forward/Reverse (by reversing wiring sequence), Speed Adjustment (with speed control board)Primary Materials: Pump cover (polycarbonate), pulley assembly (polyoxymethylene), base (polyamide)Tube Size: Tube Size: 73# (ID9.6*OD16.2, mm), 82# (ID12.7*OD19.3, mm)Tube Type: Silicone tubeMaximum Flow Rate (using clean water): 353K/ZL, 135R73# (ID9.6*OD16.2, mm) 2075ml/min82# (ID12.7*OD19.3, mm) 3085ml/min353K/ZL, 166R73# (ID9.6*OD16.2, mm) 1610ml/min82# (ID12.7*OD19.3, mm) 2415ml/min353K/ZLX, 100R73# (ID9.6*OD16.2, mm) 3040ml/min82# (ID12.7*OD19.3, mm) 4066ml/min353K/ZLX, 200R73# (ID9.6*OD16.2, mm) 4810ml/min82# (ID12.7*OD19.3, mm) 7055ml/min353K/ZLX, 300R73# (ID9.6*OD16.2, mm) 2075ml/min82# (ID12.7*OD19.3, mm) 3085ml/min353K/BT, 24V280R, 73# (ID9.6*OD16.2, mm) 4120ml/min150R, 82# (ID12.7*OD19.3, mm) 3400ml/min353K/BT, 36V400R, 73# (ID9.6*OD16.2, mm) 5650ml/min300R, 82# (ID12.7*OD19.3, mm) 7270ml/min
- Model: 353K/BT
- Motor Type: Stepper Motor (Requires a driver to operate; driver must be purchased separately)
- Voltage and Power: 24 V, 54 W
- Speed: 280rpm MAX (Flow Rate: ≤ 4120ml/min)
- Tube Size: 73# Silicone Tubing (ID9.6 × OD16.2 × WT3.3mm)
| Voltage | 24 Volts |
|---|---|
| Brand Name | Generic |
| Manufacturer | TODA Fluid Control |
| Model Number | 353K/BT |
| Power Source | Corded Electric |
| Material Type | Plastic |
| Product Style | Above Ground |
| Included Components | Peristaltic Pump |
| Item Dimensions L x W x H | 6.73"L x 5.59"W x 6.91"H |
