RS60 L Manual Rotary Stage, R Axis Rotation Platform with 2.36 inches Table Diameter, Aluminum Alloy Precision Sliding Table for Optical Adjustment

The RS60-L Manual Rotary Stage offers precise angular adjustment for applications in optical alignment, instrumentation, and automated positioning systems. Built with aluminum alloy and cross roller guides, it ensures smooth operation and accurate rotation up to 360 degrees with fine adjustment capability. The stage supports a load of 3kg and includes mounting holes for secure installation.Specification:Item Type: Manual Displacement PlatformMaterial: Aluminum alloyTable Diameter: 60mmMovement Mode: R-axis rotationStroke: 360 degreesFine Adjustment: ±5°Load Capacity: 3kgMinimum Scale: 2 degreesConcentricity: 0.03mmPackage List:1 x Manual Displacement Platform

• Precision Cross Roller Guidance This manual displacement platform utilizes cross roller guide rails to deliver High Precision and stable movement. The mechanism ensures smooth rotation and reliable performance, making it suitable for integration into precision machinery and optical instruments requiring exact angular positioning.
• Lightweight Aluminum Alloy Construction Crafted primarily from aluminum alloy, this rotating stage offers a combination of strength and minimal weight. Its compact design allows easy incorporation into built-in systems or multi-axis configurations without adding significant load or complexity.

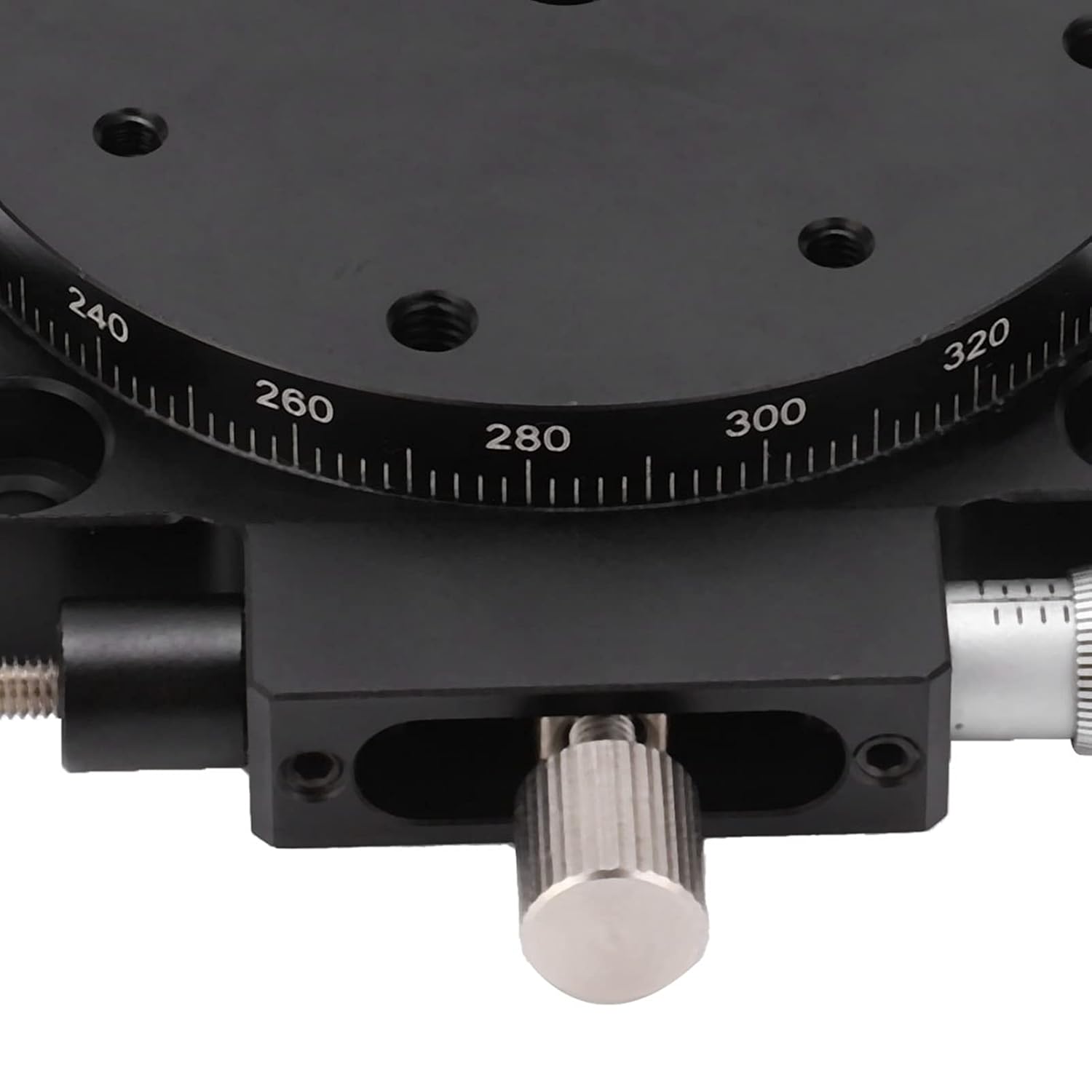

• Micrometer Drive for Ultra-Fine Adjustment Equipped with a micrometer drive system, this stage enables coarse 360-degree rotation as well as fine adjustments within ±5 degrees. The dual tuning capability allows users to approach the desired position quickly and then achieve exact alignment with minimal effort.
• Versatile Application Compatibility Ideal for high-accuracy applications and medium-load scenarios, this rotary table is widely used in inspection devices, research instruments, and industrial automation. It supports precise angular positioning and repeatable movements in setups requiring controlled rotation.
• Modular and Multi-Axis Integration Designed to work alongside other stages such as linear X, Y, Z, or additional R and C axes, this unit enables flexible multi-directional positioning systems. It supports various actuation methods including handwheels, micrometers, and indexed feed screws for tailored motion control.
